Beskrivning
Portable transport for the human race
The Link family of bikes is designed with a simple goal–getting you from where you are to where you need to be. Whether your journey is all on bike or a combo of public transport and bike, your Link is ready to adapt. Go by Link and keep to your own schedule. Explore below.
THE JACK OF ALL TRADES

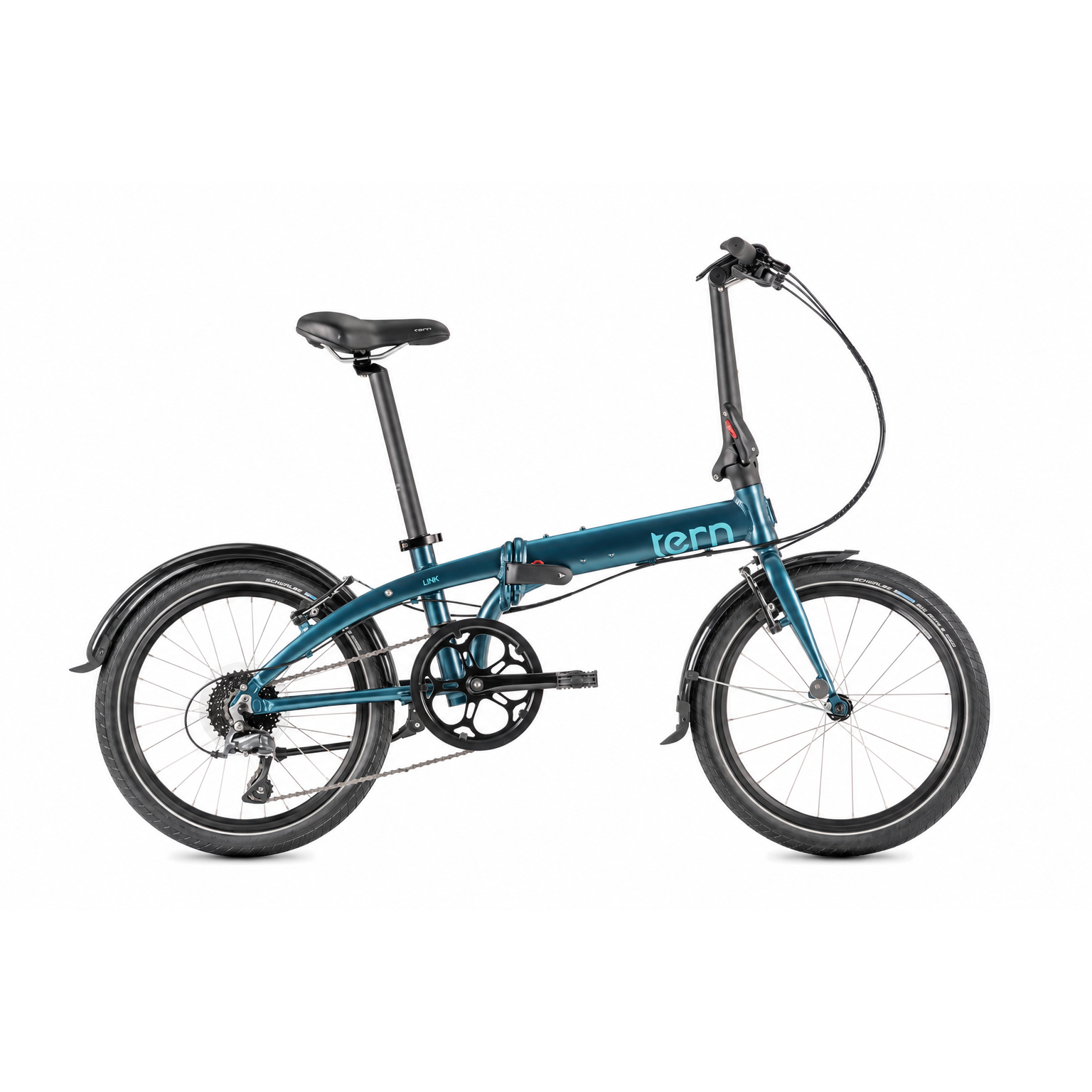

Link D8
Mobile phones, umbrellas, point and shoot cameras—the natural arc of evolution moves in a direction of increasing portability—the bicycle is no different. The Link D8 is your everyday travel companion, whether your trip is exclusively on two wheels or in combination with buses, trains, or automobiles.
- 8-speed drivetrain for all the range you need in the city
- Andros™ handlebar stem for tool-free riding position adjustments on the fly
- Shimano Claris rear derailleur for quick and responsive gear shifting
- Schwalbe Big Apple tires with Kevlar puncture protection
- Folds in under 10 seconds to fit under a desk
- Magnetix™ 2.0 lock the bike in place when folded
- Rear rack, fenders and integrated lighting available as options, in select countries
THE STEALTHY ONE
Link D7i
The Link D7i is perfect for getting around in the city, hauling gear, and riding day-in-day-out. Because it’s built around a durable low seven-speed Nexus internal hub, it’s ideal for carrying onto buses or riding in the rain. Thanks to the optional rear rack and integrated lighting with electricity-generating hub, you can customize it into exactly the urban bike you’re looking for.
- 7-speed internal geared Shimano hub for versatility and low maintenance
- Andros™ handlebar stem for tool-free riding position adjustments on the fly
- FreeDrive™ chain cover protects your clothes from grease and dirt
- Bomb-proof wheels built with Sapim spokes
- Schwalbe Big Apple tires with Kevlar puncture protection
- Fenders for rainy days
- Folds compactly in 10 seconds for storage and transport
- Rear rack and integrated lighting available as options
THE PEOPLE’S CHOICE
Link C8
The Link C8 brings our core technologies to a bike with an amazing price and even better ride. With unique folding technology, versatile gearing, and comfortable tires, the C8 is the People’s Choice. It folds fast, and folds small—so that it’s always easy to tuck away or take with you.
- Entry-level price with advanced Tern technology, including the super-stiff Physis™ 3D handlepost
- Folds in 10 seconds—put it under your desk or take it on the subway
- 20” wheels make it easy to stop-and-go on busy streets
- Wide 8-speed gearing for climbing hills and racing through the city
- Fold and store indoors for the best theft protection
- Options: rack, fenders, and integrated lighting with electricity-generating hub
THE EXPLORER
Link B7
The Link B7 is built for exploring. It folds down small in ten seconds, so you can bring it with you anywhere—on the subway, in your car, or even store it indoors at night. With 7-speed gearing, eyelets for rear racks, and a height-adjustable telescopic handlepost, it packs a ton of versatility. Ride one and discover the convenience of Tern.
- Folds small but rides like a full-size bike
- 20” wheels make it easy to stop-and-go on busy streets
- Wide 7-speed gearing for climbing hills and racing through the city
- Folds compactly for storage and transport
- Adjusts to fit a wide range of riders
- Eyelets for adding rear racks
- Optional fenders for rainy days
THE STEALTHY ONE
Link D7i
The Link D7i is perfect for getting around in the city, hauling gear, and riding day-in-day-out. Because it’s built around a durable low seven-speed Nexus internal hub, it’s ideal for carrying onto buses or riding in the rain. Thanks to the optional rear rack and integrated lighting with electricity-generating hub, you can customize it into exactly the urban bike you’re looking for.
- 7-speed internal geared Shimano hub for versatility and low maintenance
- Andros™ handlebar stem for tool-free riding position adjustments on the fly
- FreeDrive™ chain cover protects your clothes from grease and dirt
- Bomb-proof wheels built with Sapim spokes
- Schwalbe Big Apple tires with Kevlar puncture protection
- Fenders for rainy days
- Folds compactly in 10 seconds for storage and transport
- Rear rack and integrated lighting available as options
Specifications
D8D7iC8B7
GENERAL INFORMATION
WHEEL SIZE:
20″ wheels
SPEEDS:
1 x 8
WEIGHT:
12.1 kg (26.7 lb)
FOLDING SIZE:
38 x 79 x 72 cm (15″ x 31.1″ x 28.3″)
FOLDING TIME:
10 sec
FRAME SIZES:
One size
GEAR INCHES:
33″ – 87″ (2.60 – 6.94 m)
DISTANCE: SEATPOST TO HANDLEBAR:
Min. 620 mm (24.4″) Max: 690 mm (27.2″)
DISTANCE: SADDLE TO PEDAL:
Min: 700 mm (27.6″) Max: 960 mm (37.8″)
SUGGESTED RIDER HEIGHT:
142 – 190 cm (4’8″ – 6’3″)
MAX LOAD WEIGHT:
105 kg (230 lb)
FRAME
FRAME:
Tern Link, aluminum, OCL+ joint, 3 patented technologies
FORK:
Integrated, hi-tensile steel
COCKPIT
HANDLEPOST:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 350 mm
STEM:
Tern Andros (G2), adjustable, forged construction, patented technology
HEADSET:
Flux, cartridge bearings, Physis integrated
HANDLEBAR:
Flat bar, 6061-Al, Andros butted
GRIPS/BAR TAPE:
Velo ergonomic, lock-on
SADDLE:
BioLogic Como DLX
SEATPOST:
SuperOversize, 6061-AL, micro-adjust clamp
SEATPOST CLAMP:
SuperOversize, 6061-AL
BRAKES
FRONT BRAKE:
V, aluminum, linear spring
REAR BRAKE:
V, aluminum, linear spring
BRAKE LEVERS:
V, aluminum bracket/lever
BRAKE CABLE & HOUSING:
Anti-compression housing, slick cables
.
WHEELS
FRONT HUB:
Mini, aluminum, QR Opt: Panasonic dynamo
REAR HUB:
Formula, 8 spd cassette
SPOKES AND NIPPLES:
Sapim Leader, stainless steel
RIMS:
Doublewall aluminum
TIRES:
Schwalbe Big Apple, 50-406, puncture protection, Reflex
TRANSMISSION
SHIFTER(S):
Shimano, 1 x 8 spd, trigger
REAR DERAILLEUR:
Shimano Claris
CRANKSET:
Forged 6061 aluminum crank arms, hand-polished
CASSETTE/FREEWHEEL:
11-32T, 8 spd
BOTTOM BRACKET:
Cartridge, sealed bearings
CHAIN:
8 spd.
PEDALS:
Folding, alloy body
SHIFTER CABLE & HOUSING:
SP
BELLS & WHISTLES
BELL:
Aluminum
KICKSTAND:
Deluxe center mount
CLIP SYSTEM:
Magnetix 2.0
LUGGAGE SOCKET:
Yes
FRONT LIGHT:
Opt: Tern Valo 2, integrated, 41 lux/150 lumens
REAR LIGHT:
Opt: Deluxe LED
FENDERS:
Opt: RP Chromeplastic, stainless hardware
RACK(S):
Opt: Tern Loader Rack
GENERAL INFORMATION
WHEEL SIZE:
20″ wheels
SPEEDS:
1 x 7
WEIGHT:
14.4 kg (31.7 lb)
FOLDING SIZE:
38 x 79 x 72 cm (15″ x 31.1″ x 28.3″)
FOLDING TIME:
10 sec
FRAME SIZES:
One size
GEAR INCHES:
33″ – 80″ (2.62 – 6.41 m)
DISTANCE: SEATPOST TO HANDLEBAR:
Min. 620 mm (24.4″) Max: 690 mm (27.2″)
DISTANCE: SADDLE TO PEDAL:
Min: 700 mm (27.6″) Max: 960 mm (37.8″)
SUGGESTED RIDER HEIGHT:
142 – 190 cm (4’8″ – 6’3″)
MAX LOAD WEIGHT:
105 kg (230 lb)
FRAME
FRAME:
Tern Link, aluminum, OCL+ joint, 3 patented technologies
FORK:
Integrated, hi-tensile steel
COCKPIT
HANDLEPOST:
Tern Physis 3D, 3D forged, 5 patented technologies
STEM:
Tern Andros, adjustable, forged construction, patented technology
HEADSET:
Flux, cartridge bearings, Physis integrated
HANDLEBAR:
Flat bar, 6061-Al, Andros butted
GRIPS/BAR TAPE:
Velo ergonomic, lock-on
SADDLE:
BioLogic Como DLX
SEATPOST:
SuperOversize, 6061-Al, micro-adjust clamp
SEATPOST CLAMP:
SuperOversize, 6061-Al
BRAKES
FRONT BRAKE:
V, aluminum, linear spring
REAR BRAKE:
V, aluminum, linear spring
BRAKE LEVERS:
V, aluminum bracket/lever
BRAKE CABLE & HOUSING:
Anti-compression housing, slick cables
.
WHEELS
FRONT HUB:
Mini, aluminum Opt: Panasonic dynamo
REAR HUB:
Shimano Nexus 7 freewheel
SPOKES AND NIPPLES:
Sapim Leader, stainless steel
RIMS:
Doublewall aluminum
TIRES:
Schwalbe Big Apple, 50-406, puncture protection, Reflex
TRANSMISSION
SHIFTER(S):
Shimano Nexus, 1 x 7 spd
CRANKSET:
Forged 6061 aluminum crank arms, hand-polished
CASSETTE/FREEWHEEL:
17T
BOTTOM BRACKET:
Cartridge, sealed bearings
CHAIN:
408H
PEDALS:
Folding, alloy body
SHIFTER CABLE & HOUSING:
Shimano
BELLS & WHISTLES
BELL:
Aluminum
CHAINGUARD:
BioLogic FreeDrive
KICKSTAND:
Deluxe center mount
CLIP SYSTEM:
Magnetix 2.0
LUGGAGE SOCKET:
Yes
FRONT LIGHT:
Opt: Tern Valo 2, integrated, 41 lux/150 lumens
REAR LIGHT:
Opt: Deluxe LED
FENDERS:
RP Chromeplastic, stainless hardware
RACK(S):
Tern Loader Rack
GENERAL INFORMATION
WHEEL SIZE:
20″ wheels
SPEEDS:
1 x 8
WEIGHT:
12.8 kg (28.2 lb)
FOLDING SIZE:
39.5 x 80 x 73 cm (15.6″ x 31.5″ x 28.7″)
FOLDING TIME:
10 sec
FRAME SIZES:
One size
GEAR INCHES:
35″ – 95″ (2.78 – 7.57 m)
DISTANCE: SEATPOST TO HANDLEBAR:
620 mm (24.4″)
DISTANCE: SADDLE TO PEDAL:
Min: 700 mm (27.6″) Max: 960 mm (37.8″)
SUGGESTED RIDER HEIGHT:
142 – 190 cm (4’8″ – 6’3″)
MAX LOAD WEIGHT:
105 kg (230 lb)
FRAME
FRAME:
Tern Link, aluminum, FBL 2 Joint, 3 patented technologies
FORK:
Integrated, hi-tensile steel
COCKPIT
HANDLEPOST:
Tern Physis 3D, 3D forged, 5 patented technologies
STEM:
Fixed height, forged QR
HEADSET:
Flux, cartridge bearings, Physis integrated
HANDLEBAR:
Flat bar, 6061-AL
GRIPS/BAR TAPE:
BioLogic Ergo, Kraton
SADDLE:
Velo Comfort
SEATPOST:
SuperOversize, 6061-AL, micro-adjust clamp
SEATPOST CLAMP:
SuperOversize, 6061-AL
BRAKES
FRONT BRAKE:
V, aluminum, linear spring
REAR BRAKE:
V, aluminum, linear spring
BRAKE LEVERS:
V, aluminum bracket/lever
BRAKE CABLE & HOUSING:
Anti-compression housing, slick cables
.
WHEELS
FRONT HUB:
Mini, aluminum Opt: Panasonic dynamo
REAR HUB:
8 spd, aluminum
SPOKES AND NIPPLES:
Stainless steel
RIMS:
Aluminum
TIRES:
Impac BigPac, 50-406, Reflex
TRANSMISSION
SHIFTER(S):
Shimano, 1 x 8 spd, twist
REAR DERAILLEUR:
Shimano Tourney TX
CRANKSET:
Forged 6061 aluminum, 52T
CASSETTE/FREEWHEEL:
Shimano 8 spd, 11-30T
BOTTOM BRACKET:
Two-piece
CHAIN:
8 spd
PEDALS:
Folding, alloy body
SHIFTER CABLE & HOUSING:
SP
BELLS & WHISTLES
BELL:
Aluminum
KICKSTAND:
Deluxe center mount
CLIP SYSTEM:
Magnetix 2.0
LUGGAGE SOCKET:
Yes
FRONT LIGHT:
Opt: Deluxe LED
REAR LIGHT:
Opt: Deluxe LED
FENDERS:
Opt: RP Chromeplastic, stainless hardware
RACK(S):
Optional
GENERAL INFORMATION
WHEEL SIZE:
20″ wheels
SPEEDS:
1 x 7
WEIGHT:
12.1 kg (26.6 lb)
FOLDING SIZE:
39.5 x 80 x 73 cm (15.6″ x 31.5″ x 28.7″)
FOLDING TIME:
10 sec
FRAME SIZES:
One size
GEAR INCHES:
36″ – 72″ (2.86 – 5.72 m)
DISTANCE: SEATPOST TO HANDLEBAR:
620 mm (24.4″)
DISTANCE: SADDLE TO PEDAL:
Min: 700 mm (27.6″) Max: 960 mm (37.8″)
SUGGESTED RIDER HEIGHT:
142 – 190 cm (4’8″ – 6’3″)
MAX LOAD WEIGHT:
105 kg (230 lb)
FRAME
FRAME:
Tern Link, aluminum, FBL 2 Joint, 3 patented technologies
FORK:
Hi-tensile steel
COCKPIT
HANDLEPOST:
Q-Lock, forged aluminum, patented
STEM:
Telescope, 6061-AL
HEADSET:
Cartridge
HANDLEBAR:
Flat bar, 6061-AL
GRIPS/BAR TAPE:
BioLogic Ergo, Kraton
SADDLE:
Velo Comfort
SEATPOST:
SuperOversize, 6061-AL, micro-adjust clamp
SEATPOST CLAMP:
SuperOversize, 6061-AL
BRAKES
FRONT BRAKE:
V, aluminum, linear spring
REAR BRAKE:
V, aluminum, linear spring
BRAKE LEVERS:
V, aluminum bracket/lever
BRAKE CABLE & HOUSING:
Anti-compression housing, slick cables
.
WHEELS
FRONT HUB:
Mini, aluminum
REAR HUB:
7 spd, aluminum
SPOKES AND NIPPLES:
Steel / Stainless steel
RIMS:
Aluminum
TIRES:
Impac StreetPac, 47-406 / Kenda Kwest, 20 x 1.5″
TRANSMISSION
SHIFTER(S):
Shimano, 1 x 7 spd, twist
REAR DERAILLEUR:
Shimano Tourney
CRANKSET:
Forged 6061 aluminum, 52T
CASSETTE/FREEWHEEL:
Shimano 7 spd, 14-28T
BOTTOM BRACKET:
Two-piece
CHAIN:
7 spd
PEDALS:
Folding, alloy body
SHIFTER CABLE & HOUSING:
SP
BELLS & WHISTLES
BELL:
Aluminum
KICKSTAND:
Deluxe center mount
CLIP SYSTEM:
Magnetix 2.0
LUGGAGE SOCKET:
No
FENDERS:
Opt: RP Chromeplastic, stainless hardware
Har du några frågor om denna produkt?
